DOCK EDGE Boat Docking Dock Side™ Premium Mooring Whips

Available in 8′, 12′, 14′ & 16′ lengths for boats up to 33′ and up to 20,000 lb.

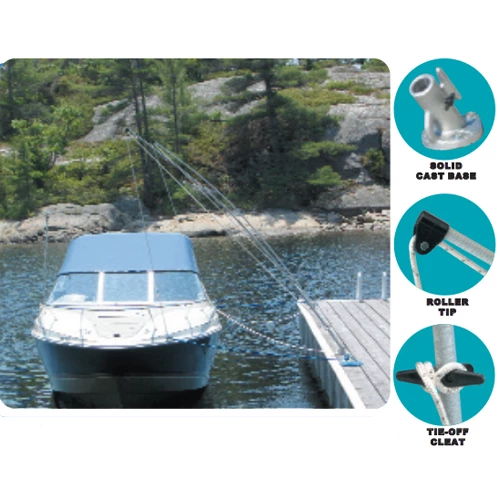

These Dock Side™ Premium Mooring Whips start with a solid fiberglass rod and are then manufactured in multi-stages with an exclusive cross-wound fiberglass for extra rigidity unobtainable with solid rod alone. This multi-stage manufacturing gives these whips the necessary strength and flex to retain the boats’ position.

Exclusive “Plug & Socket” design for quick and easy separation and cast-aluminum base with built-in cleat, ring and thumb screw. Each whip includes unique functional roller tip and a tie-off cleat for easier access to your boat.

What’s in the Kit

• Two whip poles
• Two locking screws (for base)
• Two pole cleat assemblies (2pc)
• Two optional pulley tip wheels
• Two whip lines
• One spring line
• Two line tensioners
• Two aluminum bases
• Six lag bolts (for bases)
• Six washers (for bases)

Dock Side™ Premium Mooring Whip Selection Chart

Pole Length	Boat Length	Max. Boat Weight	Mooring Distance From Dock	DOCKE#	Model
8′	Up to 18′	2,500lb.	Minimum 3′	3200-F	11835725
12′	Up to 23′	5,000lb.	Minimum 4′	3400-F	11835733
14′	Up to 28′	10,000lb.	Minimum 5′	3600-F	11835741
16′	Up to 33′	20,000lb.	Minimum 5′-6′	3800-F	11835758
